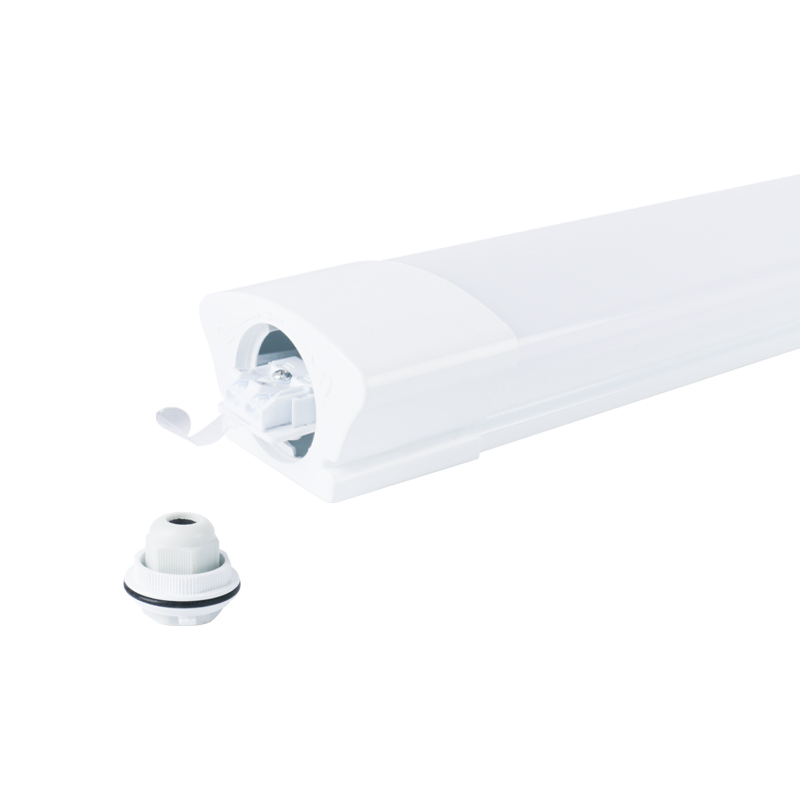

SW-H IP65 Waterproof Luminaire

The SW-H waterproof tri-proof lamp adopts the integral molding technology of the lamp body PC material, which has a novel and compact appearance, high temperature resistance, high mechanical strength, impact resistance index IK08, and is not easy to deform and age. The light is soft and uniform, the light-emitting area is large, and it will not turn yellow after long-term use.

send email to us

Products Details

Product model: SW-H Product material: PC material LED: SMD 2835 Cable Gland: PG13.5 CRI: Ra80 Type of Protection: IP65 Warranty: 3 Years1. The SW-H waterproof tri-proof lamp adopts the integral molding technology of the lamp body PC material, which has a novel and compact appearance, high temperature resistance, high mechanical strength, impact resistance index IK08, and is not easy to deform and age. The light is soft and uniform, the light-emitting area is large, and it will not turn yellow after long-term use. 2. The LED light source adopts SMD 2835 high-brightness beads, high refractive index, high brightness, high chromaticity, natural and undistorted, compared with fluorescent lamps, the energy saving is as high as 50%. 3. This tri-proof light adopts fully sealed light body, triple protection technology, after special surface spraying and sealing treatment, it can be used for a long time in harsh environments such as hot, humid and corrosive, and the waterproof level is IP65, which can effectively prevent dust, Short circuit caused by mosquitoes and rain. 4. Thickened aluminum base, good heat dissipation performance, lamp life up to 50000H, not easy to rust and corrosion, provide 3-year warranty. 5. Rotating side cover design, easy to install, the mounting bracket can be freely positioned on the lamp, and the end cover with twist lock mechanism can easily access the electrical terminals. 6. The wiring is convenient and fast, the terminal block adopts the push-button connector, and the electrical connection can be realized without tools.

Commonly used in wet environments such as garages, shopping malls, wetlands, workshops, and offices

Model

Voltage

Dimension(mm)

Power

LED Chip

Luminous flux

SW-H18

100-240V

600x75x47

18W

2835

1800lm

SW-H35

100-240V

1200x75x47

35W

2835

3500lm

SW-H50

100-240V

1500x75x47

50W

2835

5000lm
